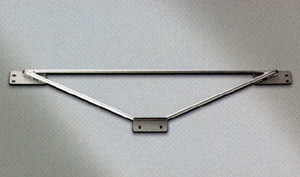

TRD 3-Point Rear Strut Bar Installation

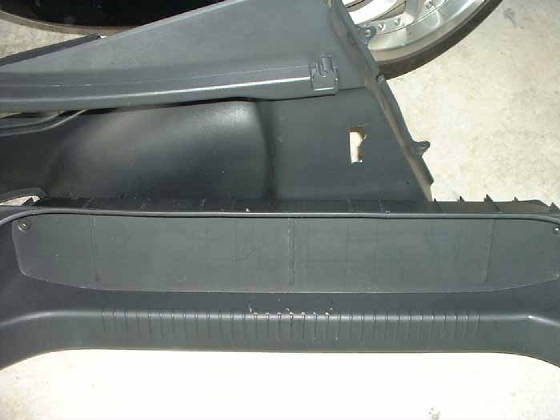

For holes on the side of the strut, you can cut a larger than life hole (easy for installer), or cut one with the exact shape (allow 3mm clearance when should the strut flex during hard cornering). Patience required for the latter; especially when your eyes have to be laser accurate before using the knife.

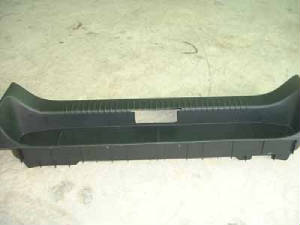

The rectangular hole for the horizontal tray is actually optional. Installation can be done without cutting this hole, but it will be extremely difficult and you have to talk the installer into doing it. I avoided this because of other constrains I have with my trunk carpentry. In any case, my horizontal tray will eventually be concealed. TRD actually provided a decal to cover this rectangular hole.


Do not under estimate the installation effort for this strut. The bottom screws are required to be secured inside the body frame where there is hardly any access. Provision has been made by TRD to make this installation possible, refer to installation instructions for more details.
